Minirack · Mounts

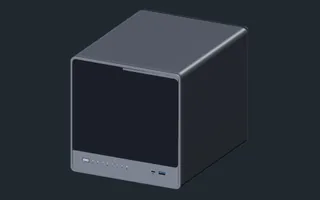

Minisforum N5 Air carrier

5U NAS carrier · bottom-first placement · open-rear rack required

Specifications

Rack height: 5U
Depth: 260 mm
Mounting: 3D-printed 5U NAS carrier

Hardware specifications

Specifications
Dimensions	254 × 260 × 222.25 mm (W × D × H)
Rack space	5U
Device clearance	203 mm internal width; 199 mm nominal chassis; 3.75 mm under the top rails¹
Parts and hardware	Two walls with ears, vented floor, rear brace; 10 × M3 heat-set inserts, 10 × M3x8
Print status	Untested prototype
Download package	Four STL (mm), Blender source (m), print and assembly notes²

Specifications reviewed 2026-10-15. Hardware revisions and configurations vary; check the sources for your exact unit.

Model & configuration

Untested printable prototype designed around the published 199 × 202 × 252 mm N5 Air envelope: 203 mm internal width, the NAS loads from the front and rests on a vented floor between two walls with 10-inch ears; rear corner stops and a top brace. Four parts for a 250 mm bed, M3 heat-set inserts. 260 mm total depth needs an open-rear rack or a small rear overhang. Feet and vent positions of a real unit are not verified; physical fit, load and thermals untested. Package: four STL, Blender source, notes.
